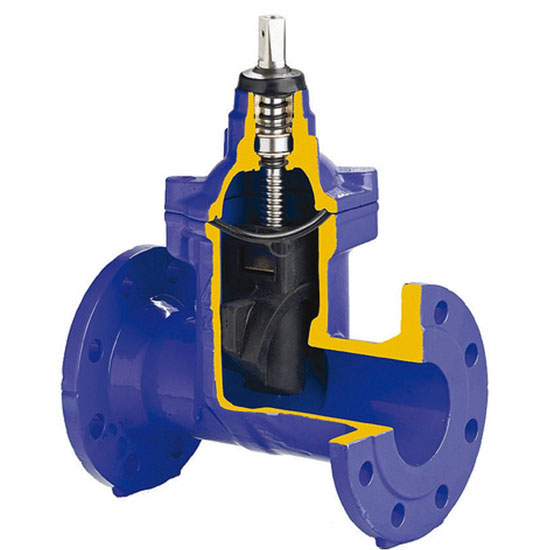

Gate valve zGAT Fig. 112
Material: Nodular cast iron
Nominal pressure: 16 bar
Nominal diameter: 40-300 mm
Temperature range: -10...+40°C
Application
Industry
Agriculture
Drinking water
Fire protection installation
Industrial water
Neutral fluids
Steering
Bare shaft
Manual operation
Electric actuator
Features
- high tightness (leakproofness class – A according to EN – 12266 – 1)
- tests according to EN – 12266 – 1
- face-to-face dimension: series F5 according to DIN 3202
- flange end connection: PN-EN-1092-2, DIN 2501
- fusion bonded polyester coating RAL 5015 or other according to customer’s request
- coating thickness: 250μm
- flange drilling PN 10/16
