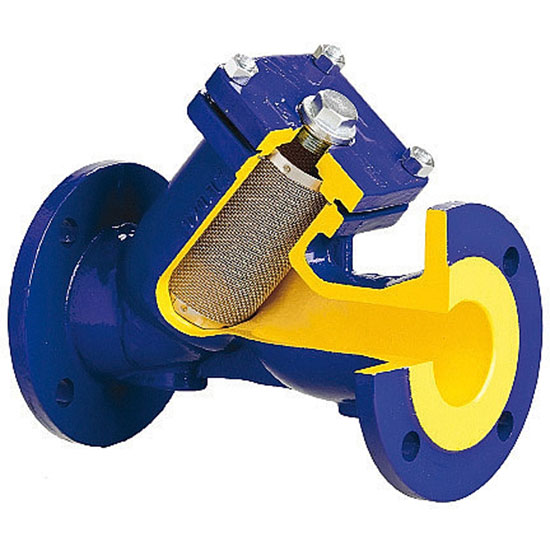

Strainer zSTRA Fig. 821

Filtr 821

Material: Grey cast iron, nodular cast iron, cast steel

Nominal pressure: 6, 16, 25, 40 bar

Nominal diameter: 15-400 mm

Temperature range: -10…+400°C

Working position: Any

Almost none of the fluids that flow through a pipeline are perfectly clear – free of pollution and other kinds of contamination. Those unwanted particles can cause a major damage to the whole pipeline system, which as a result can force the facility to limit or stop the flow of liquid. That is why strainers are an obligatory part of shipbuilding, as well as heating, steam and even power engineering installations.

Thanks to precise design of the offered Y-type strainer, it is suitable even for critical applications, including the regular presence of corrosion or dirt. Product will locate, separate and remove any form of unwanted particle in the fluid, while not slowing down the flow. Thanks to the usage of stainless steel, grey cast and nodular cast iron it remains environmentally friendly and suitable for neutral fluids or diathermic oil.

Application

Industry

Industry

Shipbuilding industry

Shipbuilding industry

Heating

Heating

Glycol

Glycol

Industrial water

Industrial water

Diathermic oil

Diathermic oil

Steam

Steam

Compressed air

Compressed air

Neutral fluids

Neutral fluids

Power engineering

Power engineering

Features

  • screen made of stainless steel (from DN 50 with reinforced ring, from DN 150 with supporting basket)
  • compact settlement
  • environment-friendly
  • cleaning of screen without disassembling
  • face-to-face dimension according to EN 558 series 1
  • flanges drilling according to EN 1092-1 for body material F
  • flanges drilling according to EN 1092-2 for body material A,C,D
  • closing tightness according to EN-12266-1

Download

Approval:

    Hygienic certificate nr HK/W/0465/01/2016

Screens

ScreenTypeDNMeshMesh screenPerformance
standardF4510-501.04550
F2865-801.252849
F15100-4001.61543
other performancescreen F100 (0,6), F200 (0,5), F300 (0,4), F400 (0,32), F600 (0,25)

*type with magnetic cartridge on client’s request
