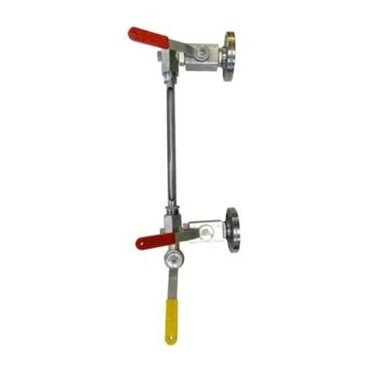

Liquid level gauge zGAU Fig. 708

Material: Carbon steel, acid resistant steel

Nominal pressure: 16 bar

Nominal diameter: 250-5000

Temperature range: 0…+200°C

Working position: Vertical

Application

Industry

Industry

Shipbuilding industry

Shipbuilding industry

Drinking water

Drinking water

petrochemistry

Petrochemical industry

Sewage

Sewage

Heating

Heating

Glycol

Glycol

Industrial water

Industrial water

Features

  • Compact design
  • Multi-functionality
  • Adaptable connections
  • Different head versions depending on parameters and assembly method
  • In the version with flange connections, as standard, connecting flanges of the heads are drilled to PN40 as for DN20 and made with sealing surfaces type B1 with a spline according to PN EN 1092-1
  • In the version with threaded connection – the 3/4 ” (GW) threaded connection as a standard
  • In the version with welded connections, it is possible to make the connection according to customer needs
  • All liquid level gauges as standard equipped with anti-leakage protection in the event of glass breakage
